Port Foam Bumper Weatherproof Chemical Resistant Abrasion Shock Absorbing
Description

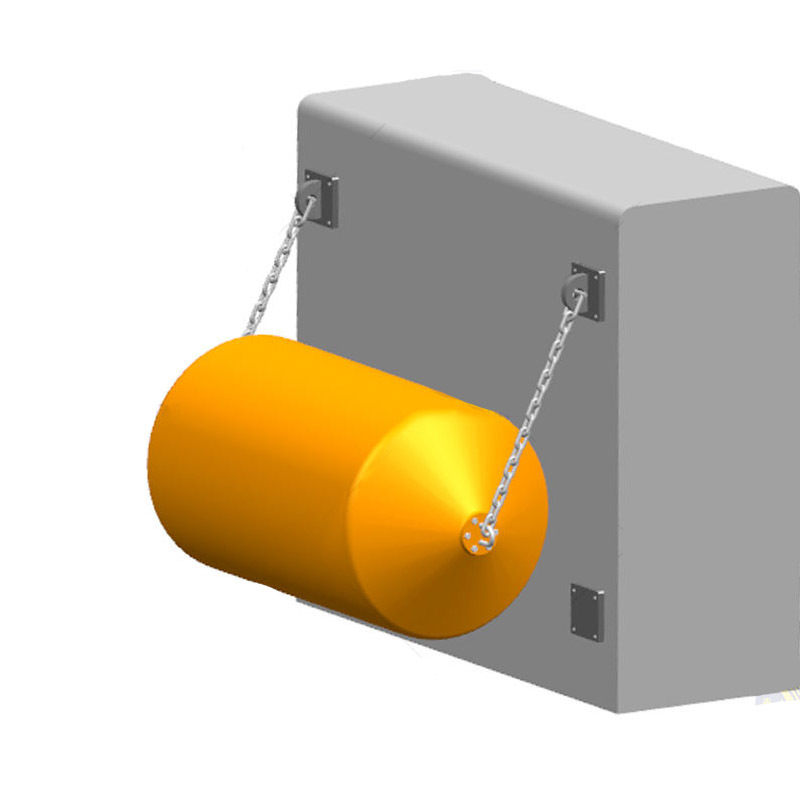

Foam fenders are highly effective in offshore ship-to-ship transfers due to their unsinkable design, lightweight handling, and ability to absorb repeated impacts without performance loss.
( Case: An oil company in the Middle East deployed Floating Foam Fenders for STS crude oil transfer operations. The fenders provided reliable protection between a VLCC (Very Large Crude Carrier) and a shuttle tanker during rough sea conditions. The operation was completed safely, with no structural damage to either vessel, demonstrating the fenders’ durability in offshore environments. )
Specifications
Diameter x Length |
Energy absorption at 60% comp |
Reaction force at 60% comp |
Approx. weight |
(mm) |
(kNm) |
(kN) |
(kg) |
300 x 1000 |
3.8 |
54 |
11 |
500 x 1000 |
10.6 |
91 |
41 |
600 x 1000 |
15.3 |
109 |
49 |
600 x 1000 |
18.3 |
131 |
55 |
700 x 1500 |
31 |
191 |
85 |
750 x 1500 |
36 |
204 |
89 |
900 x 1800 |
62 |
294 |
140 |
1000 x 1500 |
64 |
272 |
125 |
1000 x 2000 |
85 |
363 |
170 |
1200 x 2000 |
122 |
436 |
275 |
1200 x 2400 |
146 |
523 |
365 |
1250 x 2000 |
132 |
454 |
353 |
1250 x 2500 |
165 |
567 |
410 |
1500 x 3000 |
286 |
817 |
570 |
1500 x 4000 |
381 |
1089 |
720 |
1700 x 3000 |
367 |
926 |
700 |
1700 x 3500 |
428 |
1080 |
780 |
1800 x 3000 |
412 |
980 |
850 |
1800 x 3600 |
494 |
1176 |
965 |
2000 x 3000 |
508 |
1089 |
965 |
2000 x 3500 |
593 |
1271 |
1100 |
2000 x 4000 |
678 |
1452 |
1220 |
2400 x 4000 |
976 |
1743 |
1720 |
2400 x 4800 |
1171 |
2091 |
2140 |
2500 x 4000 |
1059 |
1815 |
1865 |
2500 x 5000 |
1324 |
2269 |
2500 |
2500 x 5500 |
1456 |
2496 |
2675 |
2700 x 5400 |
1668 |
2647 |
2865 |
3000 x 5000 |
1925 |
2750 |
3200 |
3000 x 6000 |
2287 |
3268 |
3740 |
3300 x 6500 |
2998 |
3894 |
4735 |
3600 x 7200 |
3953 |
4706 |
5800 |
4000 x 8000 |
4522 |
5809 |
8700 |
4200 x 8400 |
6277 |
6405 |
10000 |
4500 x 9000 |
7720 |
7353 |
10700 |
Features
Corrosion and Seawater Resistance
Unlike steel or traditional rubber fenders, foam fenders do not corrode and maintain performance even in highly saline and humid marine environments.
UV and Weather Resistant
Specially formulated skin resists degradation from prolonged sun exposure and extreme weather conditions, ensuring long service life in outdoor applications.
No Risk of Bursting
Unlike pneumatic fenders, which rely on internal pressure, foam fenders have no risk of bursting or deflation, enhancing operational safety and reliability.
Minimal Maintenance
Foam fenders require almost no maintenance, as they do not need air pressure monitoring, valve replacement, or frequent inspections.
Applications
Underwater Archaeology
Archaeological teams carefully employ air lift bags to raise delicate artifacts and structural elements from underwater excavation sites.
Bridge Construction and Repair
In bridge projects, air lift bags assist with positioning and installing underwater foundation elements and supporting temporary structures.
Dam Maintenance
Dam operators use air lift bags for inspecting and repairing underwater dam structures, gates, and intake systems.
Advantages
Proven Durability
Many of our fenders have been in operation for 10–15 years, providing long-term value and cost savings for clients.
Professional Technical Support
We offer expert advice on fender selection, installation, and maintenance, ensuring optimal performance for every project.
After Sales Service
Our dedicated service team provides continuous support, including training, troubleshooting, and replacement solutions if required.
Competitive Pricing
As a direct manufacturer with mature supply chains, we offer high-quality products at cost-effective prices.
FAQ
1. Are Floating Foam Fenders suitable for offshore operations?
Yes. Their durability, seawater resistance, and reliable performance make them ideal for offshore platforms and ship-to-ship (STS) transfers.
2. How long is the service life of a foam fender?
Typically 10–15 years, depending on usage frequency, environmental conditions, and maintenance practices.
3. Do foam fenders require regular maintenance?
Very little. Unlike pneumatic fenders, they require no pressure checks. Occasional surface cleaning and inspection are usually sufficient.
4. Can the fenders be customized?
Yes. Sizes, colors, and even logos can be customized to meet specific client requirements.
